In automated finishing, the biggest challenge is rarely robot repeatability—it is the unpredictable shape of the part itself. Cast, forged, and stamped components can vary by millimeters, while a robot may repeat within fractions of a millimeter. Radial compliant spindle technology helps close that gap by letting the cutting tool float laterally, maintain controlled contact, and follow the real edge instead of a perfect CAD path. This article explains how the technology works, where it fits in robotic deburring cells, and which parameters—speed, force, torque, and deflection—matter most when designing a reliable, high-throughput finishing process.
Why Radial Floating Spindle Deburring Matters in Automation
Automated manufacturing environments increasingly require robust solutions to address the inherent variability of cast, forged, and machined components. Radial floating spindle deburring has emerged as a critical technology for bridging the gap between rigid robotic automation and unpredictable part geometries. As manufacturers strive to eliminate manual finishing processes, integrating compliant tooling ensures that robotic cells can maintain high throughput without sacrificing edge quality or damaging expensive workpieces.

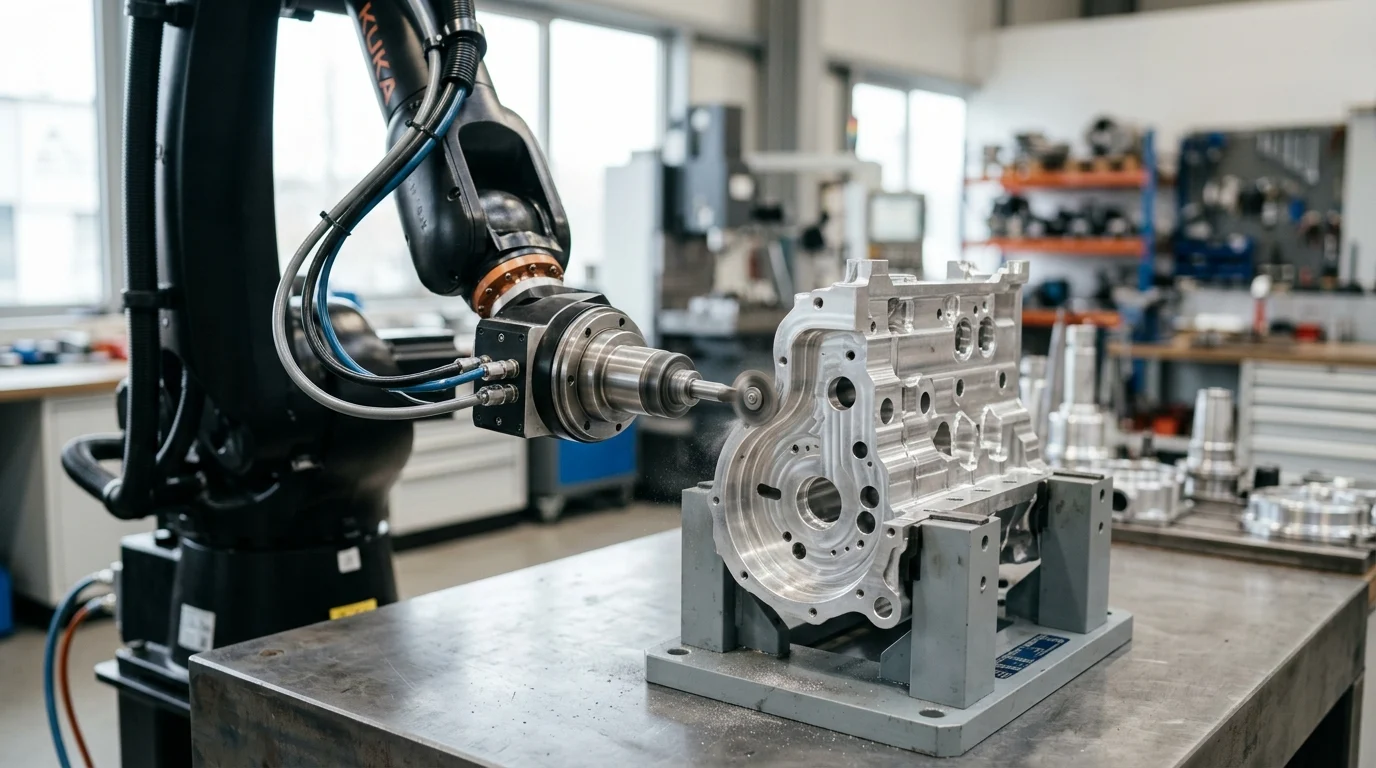

Role in robotic deburring
In a standard robotic cell, the manipulator moves along a rigidly programmed path. While modern industrial robots boast repeatability tolerances as tight as ±0.03 mm, the actual workpieces—especially raw castings or stamped parts—often exhibit dimensional variations ranging from ±1.0 mm to ±3.0 mm. A radial floating spindle introduces mechanical compliance, allowing the cutting tool to deflect laterally. This radial flexibility enables the edge defect to be tracked precisely along the actual contour of the part rather than the theoretical programmed path, ensuring constant contact and preventing tool gouging.
Key production benefits
Transitioning to compliant robotic deburring yields substantial improvements in production metrics. Facilities typically observe significant cycle time reductions compared to manual deburring operations. Furthermore, removing human operators from hazardous deburring environments aligns with strict occupational safety directives, such as those outlined by ISO for industrial robot safety. Automated deburring cells utilizing radial floating spindles frequently achieve a rapid return on investment (ROI) through reduced labor costs and lower consumable consumption.
What Defines a Radial Floating Spindle
A radial floating spindle is an advanced end-of-arm tooling (EOAT) device that combines a high-speed motor with a dynamically adjustable compliance mechanism. Unlike axial floating tools that compress along the Z-axis, radial tools pivot or translate in the X-Y plane, making them ideal for profiling external edges and complex internal cavities.
Radial compliance and mechanical design
The core of the radial floating mechanism relies on a pneumatic cylinder or a precisely engineered spring array that applies a lateral force against the spindle housing. Automation integrators often prefer pneumatic systems because they allow dynamic, real-time force adjustment via proportional pressure regulators. When the cutting tool encounters a severe geometric deviation, the spindle housing pivots off-center, absorbing the positional error while maintaining an uninterrupted, uniform cutting force against the workpiece edge.
Stroke range, force, speed, and torque
Industrial-grade radial floating spindles operate under strict performance parameters designed for continuous manufacturing. Spindle speeds typically range from 20,000 RPM to 60,000 RPM to ensure optimal chip loads for small-diameter carbide cutting tools. The radial deflection capacity generally spans ±5 to ±8 degrees from the center axis, translating to approximately ±10 mm of mechanical compliance stroke at the tool tip. It is important to note that this stroke represents lateral tool deflection limits, not the overall process variance tolerance, which remains constrained by robot path accuracy, tool reach, and edge accessibility. Contact force is finely tunable, while the spindle motor must deliver sufficient torque—often between 0.5 Nm and 2.5 Nm—to prevent stalling during aggressive material removal.
| Specification | Typical Operating Range |
|---|---|
| Spindle Speed | 20,000 - 60,000 RPM |
| Radial Deflection | ±5° to ±8° (approx. ±10 mm at tip) |
| Adjustable Contact Force | 10 N - 60 N |
| Motor Power | 150 W - 900 W |
| Operating Air Pressure | 5.0 - 7.0 bar |
Suitable burrs, edges, and materials
The effectiveness of the spindle relies heavily on the pairing of the cutting tool with the workpiece material. Radial compliance systems excel at removing primary and secondary edge defects (commonly referred to as burrs). For hard materials such as cast iron, titanium, and forged steel, double-cut solid carbide rotary files are standard. Conversely, single-flute high-speed steel (HSS) or specialized diamond-coated cutting tools are utilized for softer substrates like cast aluminum, brass, and engineered polymers to prevent material loading in the tool flutes.
It is also important to note the limitations and caveats of this technology. The compliance mechanism may cause thin-walled parts to deflect if the contact force is set too high. Additionally, the physical size of the spindle housing can restrict access in tight internal corners, and the process is generally limited to edge defects with a maximum root thickness around 1.5 mm, though this threshold depends heavily on the material, spindle power, and tool geometry; thicker defects typically require rigid pre-machining.
How It Compares with Other Deburring Methods
Selecting the optimal deburring strategy requires evaluating radial floating spindles against alternative methodologies, including rigid robotic machining, manual finishing, and abrasive mass finishing. Each approach presents distinct advantages, but compliant tooling specifically addresses the intersection of precision, adaptability, and complex geometry.
Comparison criteria for deburring options
Engineers evaluate deburring options based on capital expenditure, part geometry constraints, and the system's ability to handle positional variance (variance tolerance). Another critical factor is targeted edge control—the ability to selectively finish specific features without altering the entire part. Rigid deburring demands highly accurate fixturing and vision systems to map part deviations, which exponentially increases integration costs. Abrasive tumbling is cost-effective for bulk processing but cannot target specific edges or protect critical machined surfaces. Radial floating spindles bridge this gap by offering targeted edge profiling without the need for micro-millimeter path programming.
Cycle time, edge quality, and consistency
When comparing edge quality, rigid tools risk severe chatter marks or deep gouging if the workpiece profile deviates by more than 0.1 mm from the programmed trajectory. A radial floating spindle, maintaining a constant lateral force, produces a highly consistent chamfer or radius even when the part profile fluctuates by ±2.0 mm. This dynamic compensation ensures that cycle times remain deterministic and uninterrupted, as the robot does not need to slow down to accommodate vision-system corrections or force-torque sensor feedback loops.
Scrap reduction and process stability
Process stability is a critical metric for high-volume manufacturers. Manual deburring operations inherently suffer from operator fatigue, leading to inconsistent edge breaks and elevated scrap rates in precision aerospace or automotive components. By implementing a radial floating spindle, the scrap rate attributed to edge finishing defects is typically reduced to a fraction of manual levels. This reduction in scrapped workpieces directly correlates with higher overall equipment effectiveness (OEE).
| Deburring Method | Variance Tolerance | Scrap Risk | Cycle Time Consistency | Targeted Edge Control |
|---|---|---|---|---|
| Radial Floating Spindle | High (mechanical stroke up to ±10 mm) | Very Low | High | Excellent |
| Rigid Robotic Tooling | Very Low (<0.1 mm) | High | High | Excellent |
| Manual Deburring | High | Moderate/High | Low | Variable |
| Abrasive Tumbling | N/A (Bulk process) | Low | High | Poor |
How to Specify and Integrate the Spindle
Successfully deploying a radial floating spindle within an automated cell requires rigorous upfront engineering. Integrators must account for pneumatic infrastructure, robot payload capacities, and the harsh environmental realities of metalworking facilities.
Application review steps
The integration process begins with a comprehensive application review. Engineers must quantify the maximum root thickness of the edge defects, the hardness of the base material (measured in HRC or Brinell), and the required chamfer dimensions. These parameters dictate the necessary spindle power and the compliance force required. Furthermore, the facility must ensure a highly regulated pneumatic supply; the proportional valves governing the spindle's radial force require clean, dry, and unlubricated air, regulated strictly to the system's specified operating pressure (noted in the specification table) to maintain force accuracy.
Robot and machine integration variables
End-of-arm tooling payload and center of gravity are critical integration variables. Industrial radial floating spindles generally weigh between 2.0 kg and 5.0 kg. While this is well within the payload capacity of standard 6-axis industrial robots, collaborative robots (cobots) with 5 kg to 10 kg limits may experience kinematic degradation if the spindle's center of mass extends too far from the tool flange. Additionally, integrators must establish communication protocols, utilizing analog 0-10V signals or industrial fieldbus networks (e.g., PROFINET, EtherNet/IP) to dynamically adjust the spindle's radial pressure via electro-pneumatic regulators during the robot cycle. Crucially, integrators must account for robot dynamics. Excessive feed rates, rapid direction changes, or high tool center point (TCP) acceleration moves can overwhelm the compliance mechanism, causing chatter or inconsistent chamfers. It is essential to tune the robot's speed and acceleration to match the spindle's mechanical response time.
Coolant, chip control, dust control, and guarding
Deburring generates abrasive dust, metallic chips, and occasionally necessitates coolant spray. Spindles must carry appropriate Ingress Protection ratings, typically IP65 or IP67, to survive wet machining environments. To prevent microscopic particulates—often smaller than 50 microns in cast iron applications—from destroying internal spindle bearings, many units feature a secondary purge air port. This port supplies a constant positive pressure of 0.5 to 1.0 bar inside the spindle housing, ensuring that contaminants are continuously expelled. Proper mechanical guarding and automated chip evacuation systems must also be engineered into the cell to prevent hazardous accumulation.
How to Select the Right Deburring Solution
The final phase of modernizing a deburring operation involves selecting the specific hardware and supplier that aligns with the facility's production volume and lifecycle expectations. A holistic evaluation of the total cost of ownership ensures long-term process viability.
Supplier and spindle selection criteria
Selecting a supplier requires evaluating their global support network, application engineering expertise, and the spindle's documented Mean Time Between Failures (MTBF). High-quality spindles should exhibit a dynamic runout of less than 0.01 mm to prevent premature tool wear and chatter. Facilities should prioritize vendors who offer trial programs or robotic proof-of-concept testing, as empirical validation of the spindle's compliance response to specific part geometries is far more reliable than theoretical calculations.
Tooling, maintenance, and total cost of ownership
The total cost of ownership (TCO) extends beyond the initial capital expenditure of the spindle, which typically ranges from $4,000 to $10,000 depending on power and compliance features. Consumables and maintenance dictate the long-term financial footprint. High-speed spindle bearings generally require replacement or factory rebuilding every 2,000 to 5,000 operating hours, depending on the radial loads applied. Furthermore, continuous air consumption—which varies by model and application but can reach up to 200 liters per minute (L/min) at peak operation—represents a measurable utility cost. Upgrading to premium diamond-cut carbide tooling can offset some costs by substantially extending tool life compared to standard abrasives.
When to choose radial floating spindle deburring
Radial floating spindle deburring is a highly effective choice when manufacturing complex parts with high dimensional variability, such as sand-cast engine blocks, forged aerospace brackets, or molded composites. If the workpiece exhibits profile deviations exceeding 0.2 mm and requires consistent, localized edge breaks, rigid tooling will often fail, and manual labor can prove too costly and inconsistent. In these high-variance environments, the radial compliant spindle provides a reliable, deterministic solution for automated surface finishing.
Key Takeaways
- Use a radial floating spindle when part variation exceeds the robot’s rigid path accuracy, especially on cast, forged, or stamped components with ±1.0 mm to ±3.0 mm deviations.
- Select spindle speed in the 20,000 RPM to 60,000 RPM range based on tool diameter, burr size, material, and required chip load.
- Apply pneumatic force control when the process needs adjustable compliance for changing part geometries or burr conditions.
- Treat the compliance stroke as a compensation range, not a substitute for accurate robot paths, proper tool reach, and accessible edge geometry.
- Integrate radial floating spindles into robotic deburring cells to improve edge consistency, reduce manual finishing, and move operators away from hazardous grinding environments.
Frequently Asked Questions
What does a radial floating spindle do in robotic deburring?
It adds lateral compliance to the cutting tool, allowing it to follow real part edges instead of only the robot’s programmed path. This helps maintain steady contact, reduce gouging, and improve edge consistency.
Why is radial compliance useful for cast or forged parts?
Castings and forgings often vary by ±1.0 mm to ±3.0 mm, while robots follow precise but rigid paths. A radial floating spindle absorbs these deviations so the deburring tool can track the actual contour.
How is a radial floating spindle different from an axial floating tool?
A radial floating spindle deflects in the X-Y plane for profiling edges, contours, and cavities. An axial floating tool compresses along the Z-axis and is better suited to surface-following or vertical force control.
What spindle speeds are typical for automated deburring?
Industrial radial floating spindles commonly run between 20,000 RPM and 60,000 RPM, depending on the burr type, tool diameter, material, chip load, and required surface quality.
Can radial floating spindles reduce manual finishing work?
Yes. When integrated into a robotic grinding or polishing cell, they can reduce manual deburring, improve operator safety, stabilize quality, and support faster return on investment through lower labor and consumable costs.
