Multi-Spindle Polishing System: High-Volume Production Made Easy
2026-07-15
When machining lines accelerate, finishing often becomes the bottleneck that limits total plant output. Multi-spindle polishing addresses that gap by processing multiple parts or sequential finishing stages at the same time, helping manufacturers raise units per hour without sacrificing surface consistency. For high-volume sectors such as automotive trim, sanitary ware, brass faucets, and electronics housings, the right system can turn polishing from a labor-intensive constraint into a predictable production asset.
Why Multi-Spindle Polishing Matters for High-Volume Production
How multi-spindle polishing improves throughput

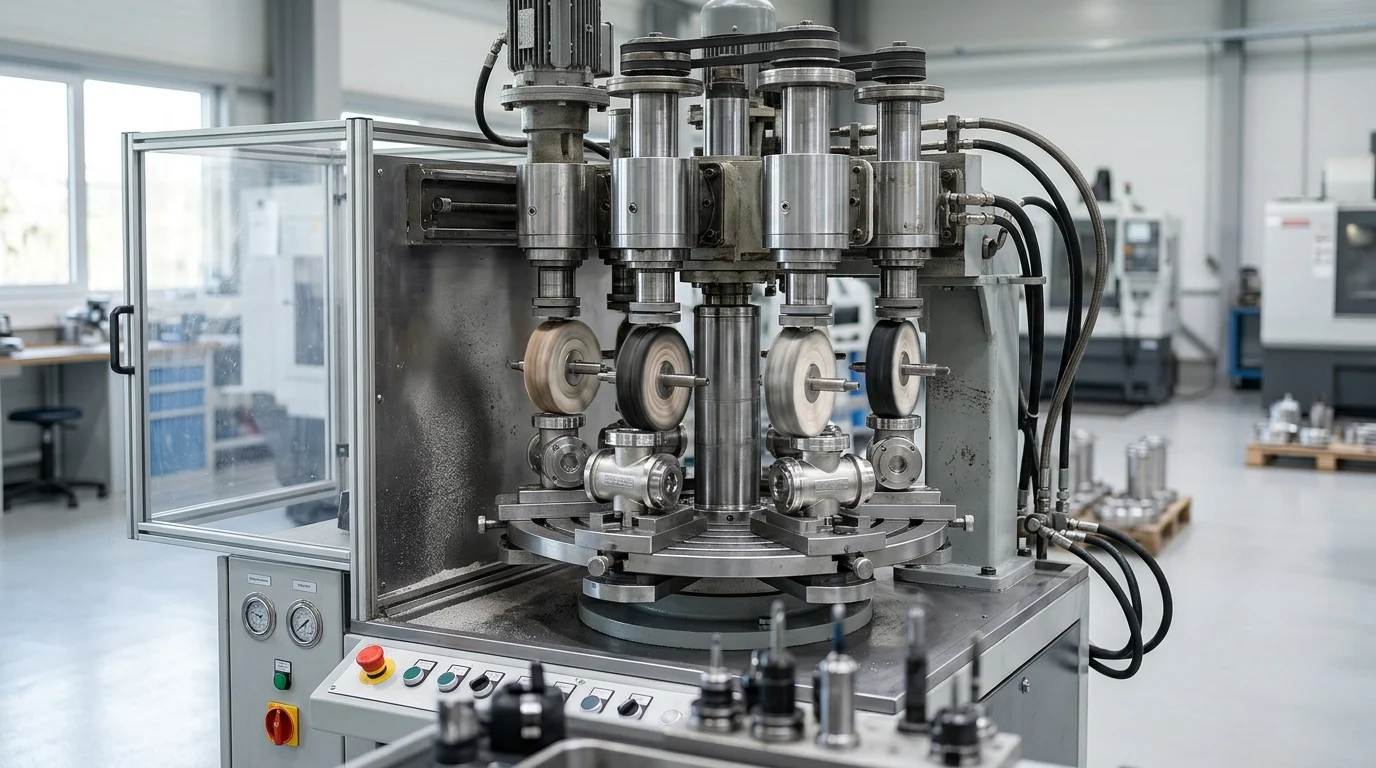

Throughput is fundamentally constrained in single-station setups by the time it takes to load, process, and unload a single part. Multi-spindle architectures solve this by utilizing a rotary or linear index table that processes multiple parts concurrently. Common configurations include rotary index tables for compact footprints, linear transfer systems for extended multi-stage processes, and CNC or robotic polishing cells for complex, multi-axis articulation. By distributing roughing, semi-finishing, and final buffing stages across four to eight active spindles, manufacturers can observe measurable increases in units per hour (UPH). For instance, depending on part size and material, a facility transitioning from a single-head machine outputting 40 UPH might achieve up to 200 UPH on a five-spindle continuous rotary system.
Which production environments benefit most
While effective, these systems require sufficient production scale to justify the capital expenditure. Environments that often benefit most include automotive trim manufacturing, sanitary ware (such as brass faucets), and consumer electronics housings. Specifically, production facilities sustaining high volumes—such as 50,000 to 100,000 units per month per part family—tend to see the most rapid amortization of equipment costs. Conversely, multi-spindle systems are generally unsuitable for job shops or frequently customized parts.
What Defines a Multi-Spindle Polishing System
A multi-spindle polishing machine is not merely a collection of motors; it is a synchronized electromechanical system designed to apply consistent abrasive friction to complex geometries. The structural integrity and precision of the core components dictate both the final surface quality and the achievable cycle time. Heavy-duty spindle motors, which typically rate between 5 kW and 15 kW, provide the necessary torque to hold and rotate the parts themselves under heavy loads.
Core components that affect quality and cycle time
In many configurations, planetary heads allow these part-holding spindles to rotate on their own axes while revolving around a central abrasive polishing wheel or a softer buffing wheel, ensuring uniform finishing. Furthermore, automated compound delivery systems are critical. These systems inject precise micro-doses of abrasives directly into the buffing interface to prevent overheating and wheel degradation.
| Component | Primary Function | Illustrative Specification / Metric |
|---|---|---|
| Spindles | Hold and rotate parts against polishing wheels | 500–3,000 RPM, Variable Frequency Drive |
| Pneumatic/Servo Actuators | Maintain contact pressure | High-precision force tolerance (e.g., ±0.5 N) |
| Custom Fixtures | Secure complex geometries | 15–30 mins per station (component swap) |
| Compound Injectors | Regulate abrasive application | Programmable feed rate (e.g., 5–20 ml/min) |
Multi-Spindle Polishing vs. Manual Polishing
The transition from manual surface finishing to multi-spindle automation represents a fundamental shift in operational strategy, replacing variable human labor with consistent, process-controlled machine output.
| Comparison Metric | Manual Polishing | Multi-Spindle Automation |
|---|---|---|
| Defect / Rework Rate | 8% – 12% | < 1.5% |
| Operator Requirement | 1 skilled operator per station | 1 operator managing 2–3 machines |
| Part-to-Part Consistency | Variable (fatigue-dependent) | Process-controlled (Cpk > 1.33) |
| Setup / Changeover Time | 5 – 15 minutes | 2 – 8 hours (full system) |
*Note: Figures are directional estimates and not universal benchmarks; actual results vary significantly by geometry, material, and facility variables.*
How to Implement Multi-Spindle Polishing Successfully
Successfully integrating a multi-spindle polishing system into an existing production line requires rigorous process engineering, moving away from the subjective art of manual polishing to the strict science of automated material removal.
Defining surface finish targets
Before programming a machine, engineering teams must define exact, quantifiable surface finish targets. Subjective terms like 'mirror finish' must be translated into measurable metrics, such as Roughness Average (Ra). Establishing these numerical baselines allows operators to select the correct progression of abrasive compounds and wheel densities for each spindle station.
How to Choose the Right Multi-Spindle Polishing Machine
Procuring a multi-spindle polishing machine is a major capital event. Selecting the right equipment requires aligning the machinery's technical capabilities with the facility's long-term production roadmap and compliance requirements.
Supplier & Compliance Checklist
- Supplier Certifications: Adhering to ISO 9001 and ISO 14001.
- Safety Standards: Verify compliance with CE markings, OSHA, or ATEX explosion-proof standards.
- Environmental Controls: Integrated dust extraction and acoustic enclosures for noise mitigation (below 85 dB).
Key Takeaways
1Use multi-spindle polishing when upstream machining outpaces finishing and the production target requires multiple stages simultaneously.
2Evaluate rotary index, linear transfer, CNC, or robotic configurations based on footprint and complexity.
3Target high-volume, stable part families first (50,000 to 100,000 units per month).
4Match spindle count and pressure control to the part geometry to protect quality.
5Avoid over-automating low-volume or frequently customized products due to fixture obsolescence.
Frequently Asked Questions
What is a multi-spindle polishing system?
It is an automated finishing system that uses multiple coordinated spindles to process several parts or polishing stages at once, improving throughput, surface consistency, and repeatability.
How much can multi-spindle polishing increase output?
Output depends on geometry, but a line moving from a single-head process at 40 UPH may reach up to 200 UPH with a five-spindle system.
Which manufacturers benefit most?
High-volume producers in automotive trim, sanitary ware, brass faucets, and consumer electronics running stable part families.
When is it not the best choice?
Job shops, low-volume production, or frequently changing custom parts where fixture costs and programming time outweigh throughput.
What components most affect quality?
Spindle motor power, fixture rigidity, pressure control, wheel selection, and automated compound delivery.
